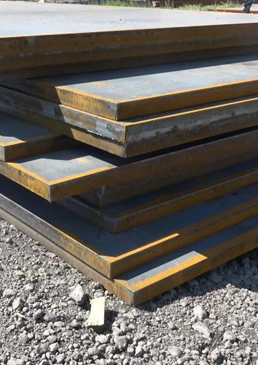

S460N Plate

What is S460N Plate

Rexton Steel & Alloys is a prominent manufacturer and supplier of S460N Plate, renowned for its exceptional strength and durability. We ensure the highest quality standards through rigorous testing and quality control measures. Our extensive experience and commitment to customer satisfaction make us a trusted source for S460N Plates, catering to various industrial applications with precision and reliability.

  • Standard Specification for S460N Plate
  • Equivalent Grades of S460N Plate
  • Types Of S460N Plate
  • Chemical Composition of S460N Plate
  • Mechanical Properties S460N Plates
  • Price of S460N Plates
  • Application of S460N Plate

S460N Steel Plates, Grade S460N Plate, S460N High Tensile Steel Plate, EN 10025-3 S460N High Yield Plates, S460N Plate Stockists in Mumbai, S460 N Structural Steel Plates, S460N Plate Supplier In India.

EN S460N Plate is a structural steel plate that is characterized by its high strength as well as its excellent weldability. Being a steel grade with a high yield strength of 460 MPa, this steel is suitable for applications where high strength is needed but the weight of the material is also an important factor. The letter “N” in S460N denotes normalized, which means that the steel has been heat-treated to improve its toughness and ductility. This normalization process also helps to improve the grain structure and thus the uniformity and the resistance to brittle fracture.

Another major benefit that is associated with the use of the S460N Plate is the fact that it is very versatile. It is widely employed in the construction of bridges, tall structures, and other structures that call for high load-bearing capability. Further, it is used in the manufacturing of equipment such as heavy plants, offshore platforms, and pressure vessels. S460N Plate exhibits excellent weldability, which makes it easier to fabricate and assemble, which is important in engineering projects.

The major components of the S460N Plate are carbon, manganese, silicon, phosphor, sulfur, and other alloys in limited proportions. This particular blend makes it possible to achieve the required mechanical properties of the material to be able to endure unfavorable conditions and heavy usage. It also improves its weldability, and which means that the possibility of getting weld defects is minimized, and the joints produced are strong and reliable.

Steel Grade S460 Structural Plate, S460N High Tensile Steel Plate Stockists in India, S460 Structural Steel Plate Exporter, S460 High Strength Alloy Plates, S460G2+M Plates, S460N Plate Manufacturer, Supplier in Mumbai.

In addition, the S460N Plate is low-temperature steel, which means that the product is ideal for use in regions that experience very cold weather. For impact and notch toughness at sub-zero temperatures, this material guarantees that structures made of it remain strong and stable in any weather. Due to this property, it is widely used in energy-related applications such as wind towers and oil rigs where the structures are exposed to cold and corrosive conditions.

S460N Plate

Standard Specification

Width

Up to 3.5 meters wide

Thickness

5 mm to 200mm

Length

Up to 3.5 meters long

Heat Treatment

Rolling/Normalised, N, Q+T

Production

Hot-Rolled (HR)

Impact tested

-52° C

Destructive and Non-Destructive Testing

  • Mechanical examining like tensile, Elongation
    and reduction of area.
  • Chemical examination-Spectro analysis
  • Impact analysis
  • Hydrostatic analysis
  • Positive material recognition
  • X-ray test
  • Firmness test

S460N Plate Processing

Cutting
Forming Drilling/ Machining
Grinding
Testing

S460N Plate Equivalent Grades :

Germany Japan France England European old Italy China Russia Inter
DIN,WNr JIS AFNOR BS EN UNI GB GOST ISO
StE460 SM520B E460R 55C FeE460KGN FeE460KGN Q460D 18G2AF /18G2AFps E460

Other Types :

EN 10025-3 S460N Steel Plates S460N Plate Manuafcturer
S460 Structural Steel Plates S460N Plate Dealer
EN10025-3 S460N Carbon Steel Plate High Strength Structural Steel Sheet S460N
S460N Plate Distributor in India S460N Low Alloy High Strength Steel Plate
S460N Steel Plate Stockholder S460N Structural Steel Plates in India
EN-10025-S460 Steel Plate Stockists EN 10025-3 Grade S460N Plates

Chemical Composition of S460N Plate

C Si Mn Ni P S Cr Mo V N Nb Ti Al Cu CEV
max 0.2 max 0.6 1 – 1.7 max 0.8 max 0.03 max 0.025 max 0.3 max 0.1 max 0.2 max 0.025 max 0.05 max 0.05 max 0.02 max 0.55 max 0.55

Mechanical Properties of S460N Plates

Grade Thickness Yield Strength Tensile Strength Elongation Charpy V Notch Impact Test
Degree Min Value
S460N mm Min Mpa Mpa Min % -50℃ J
5≤t≤16 420 520-680 18% 27
63<t≤100 360 500-650 27
100<t≤250 320 500-650 27

Note: Impact energy for impact test is on longitudinal


Price Of S460N Plates

  • High Quality S460N Industrial Plates
    US / Metric Ton (FOB Price) on request
  • Non Alloy Steel S460N Plates
    US / Metric Ton (FOB Price) on request
  • EN 10025-3 S460N Steel Plate
    US / Metric Ton (FOB Price on request
  • S460N Steel plate
    US / Metric Ton (FOB Price) on request
  • Grade S460N High Yield Steel Plates
    US / Ton (FOB Price) on request
  • S460N High Tensile Structural Steel Plates
    US / Ton (FOB Price) on request
  • Hot Rolled High-Strength Carbon Plates S460N
    US / Ton (FOB Price) on request
S460N Plate

Application Industries

factory images
  • Construction
  • Coal mines, Mines
  • Guiding and shifting plates
  • Automotive Industries
  • grinding mill scraper
  • Parpen concrete factories
  • Pedestal Liner
  • Scraps Container
  • Shovel Buckets
  • Wheel disk
