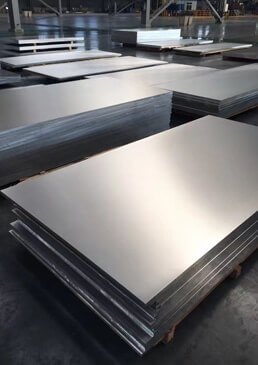

Aluminium 5086 Plates

What is Aluminium 5086 Sheet & Plate

Rexton Sheet & alloys are reputed and trusted the manufacturer, trader as well as a supplier of ALUMINIUM 5086 Plates all over the globe. We are known for our faster delivery and the quality of plates we offer to our existing as well as new customers. Aluminium plates are huge in demand due to its high strength, corrosion resistance, ductility, and other features too. Aluminium metal when exposed to high temperature causes no damage to the equipment and environment as it can withstand extreme temperature ranges too. Wanna buy aluminium 5086 plates?

Aluminium and aluminium alloys are acknowledged for its high and strong corrosion resistance characteristics. It also inherits a higher degree of electrical conductivity. The aluminium alloys are in general sensitive to the specific amount of temperature ranges say 392-482 degree F or 200-250 degree C because it loses its strength beyond it. Aluminium 5086 Plates are best known as good low-temperature aluminium alloys which automatically gains strength when it gets exposed to subzero temperatures. This high structural and strengthfull alloy composes of elements such as Al, Mg, Mn, and Cr. The content is in the percentage and Al alone comprises of 95.4%.

  • Standard Specification for Aluminium 5086 Plate
  • Equivalent Grades of Aluminium 5086 Sheet & Plate
  • Types Of Aluminium 5086 Plate
  • Chemical Composition of 5086 Aluminium Plate
  • Mechanical Properties Aluminium 5086 Plate
  • People Also Searched for
  • Price of Aluminium Alloy 5086 Sheet & Plate
  • Makes of 5086 Aluminium Alloy Plate
  • Application of ASTM B209 Aluminum Plate

ASTM B209 Aluminum Alloy 5086 Plates Stockists in Mumbai, 5086 Aluminium Plates, 5086 Aluminium Hot Rolled Plate, Aluminium Plate 5086, Aluminium 5086 Chequered Plate Supplier in India.

The physical properties, mechanical properties, and thermal properties are so adjusted that a remarkable end product could be produced. When the density, melting point, elastic modulus, Poisson's ratio, thermal expansion, and thermal conductivity are set up in the right order, product of assured quality is evolved. You can find the aluminium plates both in metric as well as imperial units. Apart from this, there are lots of other designations of aluminium and aluminium alloys. The designations could be known at the time of receiving the datasheet.

Annealing- the aluminum plates can be annealed at a temperature range of 650 degrees F or 343 degrees C which is cooled in air.

Cold working- Both aluminium and aluminium plates have an excellent cold working features in O temper.

Welding- for welding of aluminium plates conventional methods get used. Clients can obtain excellent and desired results when the plates are welded using arc welding.

Forging- the aluminium plates produced by us are easy to forge

Forming- good forming characteristics can be obtained in O temper

Machinability- the alloy has magnificent characteristics in tempers with H34, H36, and H38.

Hot working - the plates have both cold as well as hot forming characteristics without losing the strength when working. Due to all these characteristics or features, it is thoroughly been used in all kind of applications.

ASME SB209 Aluminium 5086 Sheets Supplier in Mumbai, Aluminium 5086 Perforated Sheets Stockists in India, Aluminium 5086 Coils, 5086 Aluminium HR Plate, Aluminium 5086 Plate Exporter.

Once the product is dispatched from our production unit, it is directly been sent to testing section. Here several sorts of testing are been performed so as to check the reliability and performance of the product. Some tests include a flexibility test, Positive material identification, micro, and macro test, Intergranular test, etc. These tests determine the quality of the product dispatched from our units.

Packaging and documentation-
Certain sorts of documents that contain a deep report of the product are presented to the clients. Packaging is followed with documentation. Wooden pallets, wooden crates, and fumigated boxes are used for packaging. The packaging is done in such a manner that the product doesn’t catch dust or form rust at the time of delivery.

Aluminium 5086 Plates

Standard Specification

Specification

ASTM B209 / ASME SB209

Thickness

0.2~300mm

Width

500~2500mm

Length

500~10000mm

Finish

Mill, Customer specific finish

Type

HR / CR Sheet / Plates/ Strips/ Coils/ Chequered Plates

Destructive and Non-Destructive Testing

  • Mechanical examining like tensile, Elongation
    and reduction of area.
  • Chemical examination
  • Radiographic Test
  • Pitting Corrosion Test
  • Positive material recognition
  • Eddy Current test
  • Buckling & Crushing test

Aluminium 5086 Plate Processing

Hot rolled
Cold rolled
Cutting
Forming Drilling/ Machining
Grinding
Polishing
Testing

Aluminium 5086 Sheet & Plates Equivalent Grades :

European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlMg4 AG4MC 3.3545 A95086 AlMg4 5086 AlMg4Mn

Other Types :

Aluminium Alloy UNS A95086 Plate Aluminium 5086 Tread Plates Stockists
Aluminium 5086 Circle Trader in India 5086 Aluminium CR Sheets
Aluminium 5086 Blank Dealer in India Aluminium 5086 Ring Distributor in Mumbai
Aluminium 5086 Foil Manufacturers 5086 Aluminium Strip Stockholder
Aluminium 5086 Hot Forming Plate Aluminium Werkstoff-Nr. 3.3545 Plate
ASTM B209 Aluminium A95086 Plate Supplier Commercial Aluminium 5086 Plate Exporter in India
ASME SB209 Aluminium 5086 Plate 5086 Aluminium Checkered Plate
Aluminium 5086 Hot-Rolled (HR) Plate Aluminium 5086 Cold-Rolled (CR) Sheet

Chemical Composition of Aluminium 5086 Plate

Si Fe Cu Mn Mg Cr Zn Ti Al Others, each Others, total
0.4 0.5 0.1 0.20-0.70 3.5-4.5 0.05-0.25 0.25 0.15 Balance 0.05 0.15

Mechanical Properties of Aluminium 5086 Plates

Proof Stress Tensile Strength Hardness Brinell Elongation
125 Min MPa 275 - 350 MPa 75 HB 12 Min %

People Searched For

aluminium 5086 plate exporter in india, aluminum plate 5086-h116, aluminum alloy grade 5086 plates in india, aluminium 5086 plate stockists in india, aluminium 5086 mechanical properties, aluminium 5086 plate manufacturers in mumbai, aluminium alloy 5086 specification, aluminium 5086 plate stockholder in india, aluminum 5086 roofing sheet and plate, aluminium 5086 plate suppliers in india, aluminium 5086 plate traders in mumbai, aluminium gr 5086 plate stockholder in mumbai, aluminium 5086 chemical properties, 5086 aluminium plate cut to size, aluminium 5086 patterned plate and sheet, pvc coated aluminium 5086 plate, aluminium 5086 plate price, aluminium 5086 plates dealer in mumbai, aluminium 5086 plates in mumbai, checker plate aluminium 5086, 5086 plate aluminum properties, color coated aluminium 5086 plates, aluminium 5086 plate exporters in mumbai, 5086 aluminum plate suppliers, aluminium alloy 5086 equivalent, aluminium 5086 flat sheets, aluminium 5086 plate stockists in mumbai, 5086 aluminum machinability, 5086 aluminum tread plate, aluminium 5086 bright plates, aluminium plate 5086, aluminium 5086 plate thickness, aluminium 5086 plate size, aluminium alloy 3.3545 plate, aluminium plate grade 5086, 5086 aluminum plate specifications, aluminium 5086 plate supplier in mumbai, aluminium 5086 plates manufacturer in india.


Price Of Aluminium 5086 Plate

  • Aluminium 5086 Extruded Plate Stock
    US / Metric Ton (FOB Price) on request
  • Anodized Aluminium 5086 Plate
    US / Metric Ton (FOB Price) on request
  • ASTM B209 Aluminum Alloy 5086 Sheet and Plate
    US / Metric Ton (FOB Price on request
  • ASTM B209 Aluminum 5086 Plate and Sheet
    US / Metric Ton (FOB Price) on request
  • Aluminum 5086 Chequered Plates
    US / Ton (FOB Price) on request
  • Aluminium 5086 Cold Rolled Sheet
    US / Ton (FOB Price) on request
  • Aluminium Grade 5086 Plates
    US / Ton (FOB Price) on request
Aluminium 5086 Sheet & Plates

Makes of Aluminium 5086 Plates

Hindalco Make Aluminium 5086 Plate

Hindalco Make Aluminium 5086 Plates

Jindal Aluminium Make 5086 Plate

Jindal Aluminium Make 5086 Plates

National Aluminium Company (Nalco) Make 5086 Plate

National Aluminium Company (Nalco) Make 5086 Plates

Maan Aluminium Make 5086 Plate

Maan Aluminium Make 5086 Plates


Application Industries

factory images
  • Storage Tanks
  • Spacecraft Fuel Tanks
  • Aerospace
  • Train
  • Boat Floor
  • Automobile Bodies
  • Home Appliances
